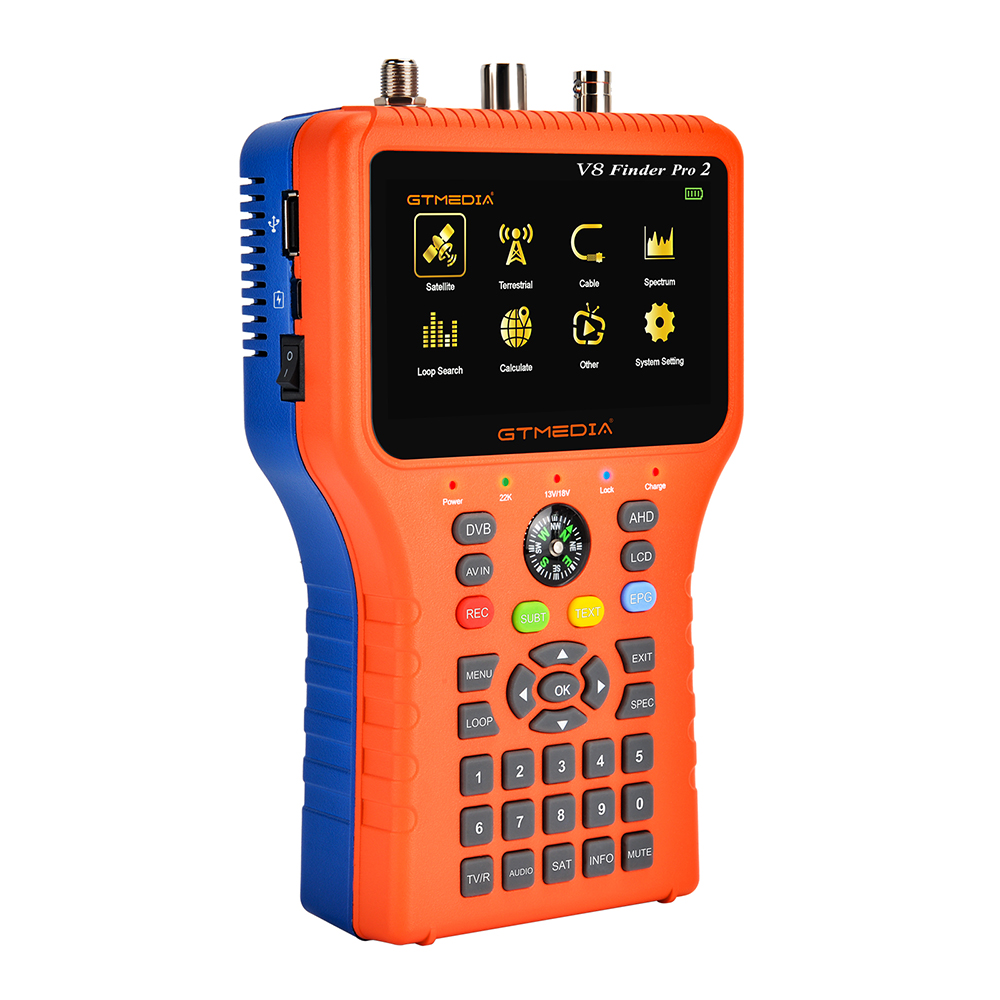

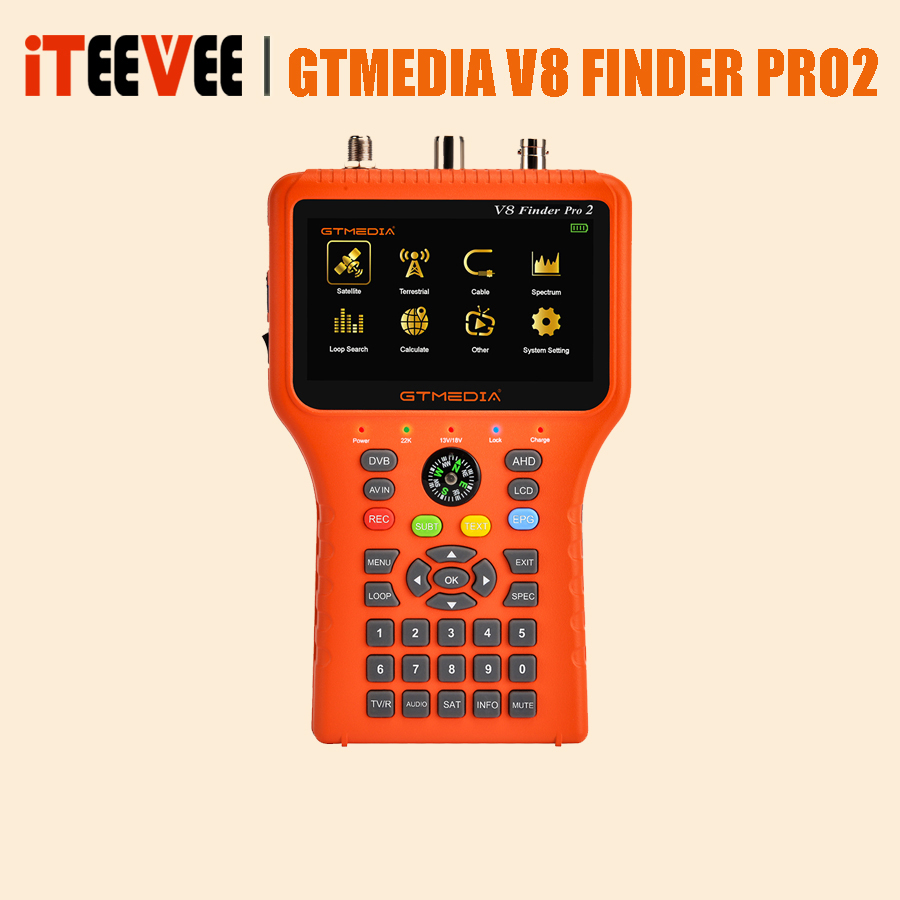

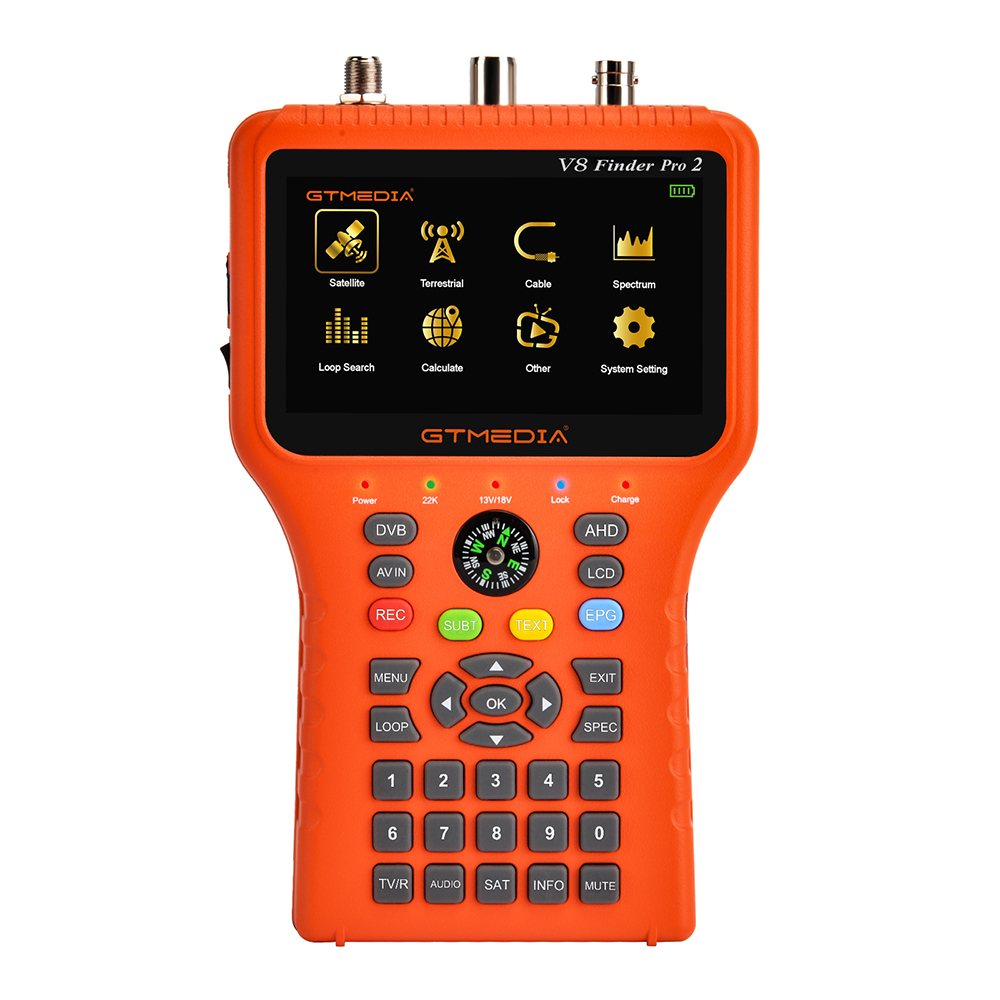

| GTMEDIA V8 Finder Pro is a DVB-S2X/S2/S/T2/T/C and MPEG-2/4 H.264/H.265 (10 bit) compliant handheld combo meter, With its compact size, light weight, intuitive user’s interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital satellite TV service, antenna signal and cable signal to residential homes or multi-dwelling units. | |
| Key Features | |
| ● 4.3 Inch High Definition TFT LCD Screen | |
| ● Fully DVB-S2X/S2/S/T2/T/C, MPEG-2/MPEG-4 compliant | |
| ● Support H.264/H.265(10 Bit) Hardware decoding | |
| ● Digital measuring device for signal strength and quality.Supports presetting all satellite information | |
| ● Support Loop Search | |
| ● Spectrum analyzer | |
| ● Supports scan of Auto, Blind, Manual or NIT | |
| ● Sound for Locking Signal | |
| ● Auto Calculate Angle of AZ,EL | |
| ● Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone | |
| ● Speaker Integrated | |
| ● Support both AV in | |
| ● Support both HDMI out | |
| ● AHD 1.0 Input: Test CCTV Camera（Support 1080P） | |
| ● Support DC12V 500mAh OUT | |
| ● Support compass function | |
| ● Support real-time power display, with low power reminder | |
| ● Supports Youtube for USB wifi 2.4G | |
| ● LNB short protect | |
| ● 7.4V/4000mAh Li-ion Battery Included | |
| ● Software upgrade via USB port | |
| ● Easy to carry | |
| Specifications | |
| TRANSMISSION STANDARDS | |
| DVB-S2X/S2/S,DVB-T2/T,DVB-C,MPEG-2,MPEG-4,H.264/H.265(10 Bit) | |
| Supports softcam: BISS auto roll, PowerVu auto roll, TNT(19.2E) | |
| Support VCM, ACM, multi-stream, T2MI, Multi-PLP | |
| Supports IKS: CCCAM, NEWCAM, MGCAM | |
| SATELLITE INPUT/DEMODULATION | |
| Connector Type | F Type |
| Input Frequency | 950 to 2150 MHz |
| Signal Input Level | ‐65 to ‐25 dBm |
| Band Switch Control | 22KHz |
| LNB Supply | 13V/18V, Max 350mA |
| Demodulation Type | DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK |
| Symbol Rate | 2<Rs<49Mband(SCPC/MCPC) |
| DVB-T2/T/Cable INPUT/DEMODULATION | |
| Connector Type | Female Type |
| Input Frequency | 48 to 862 MHz |
| Signal Input Level | ‐80 dBm(MAX) |
| ANT Supply | 5V DC @ 120mA MAX |
| Demodulation Type | QPSK,16QAM,32QAM,64QAM,128QAM,256QAM |
| LCD FEATURES | |
| LCD Type | 4.3”high-resolution digital display LCD |
| Number of Dots | 800 RGB(H) *480(V) |
| Active area (W*H) | 95.04*53.86mm |
| HD Output: On satellite finder state | |
| Format | HDMI 1.3a |
| Resolution | Optional 480i,480P 576i,576P,720P,1080i,1080P |
| AV input interface | |
| Connector Type | 3.5 mm jack |
| Video Input | CVBS |
| Audio Input | Stereo Audio L/R input |
| AHD Tester | |
| Connector Type | BNC Female |
| Impedance | 75Ω |
| Frequency Range | DC～2GHz |
| Video input support | NTSC/PAL |
| AHD input | 720P 960P 1080P HD video input,display picture |
| AUDIO/VIDEO PROCESSING | |
| Video decompression | MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 / H.265 MP&HP@L4, HW JPEG decoder |
| Resolving rate | PAL-25 frame@7200*576, NTSC -30 frame@720*480 |
| Singnal compatibility | Support conversion for different video formats |
| Video Format | 4:3, 16:9, By Pan & Scan and Letter Box conversion |
| Audio Decompression | MPEG-1 Layer I/II, MPEG-2 Layer I/II |
| Audio Output Mode | Stereo, Mono, R/L |
| DATA SERVICE PORT | |
| Conector | USB |
| Data Protocol | USB 2.0 interface |
| File Management System | NTFS, FAT32, FAT16 |
| File Format | Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp Audio: wma,mp3 Photo: jpg,jpeg,bmp,img |
| PVR Option | Support software upgrade and PVR ，Supports external HDD via USB, power wanted if necessary |
| WIFI Option | Support networking via USB WIFI |
| POWER SUPPLY | |
| Li-Lon Battery | 7.4V/4000mAh (The machine behind labeling shall prevail) |
| Battery power | Build-in Lithium battery find satellite around 3 hours Battery play time(AV input): about 5 hours |
| Adapter | OUTPUT: DC 9V/2A, INTUPT:100～240VAC 50/60Hz(Will be subject to actual configuration) |
| Power Consumption | Max.10W |
| PHYSICAL CHARACERSTICS | |
| Product Dimension Size(W*D*H) | 123*204*45(mm) |
| Product Net Weight | 0.6kg |
| Packing box size(W*D*H) | 260*200*57(mm) |
| Package weight | 0.85kg |
| Temperature | Operation 0～+45℃; Storage -10~+60℃ |
| Humidity | 20~90%, non-condensed |
