Gtmedia GT COMBO

Hardware

CPU

Amlogic S905X3, Quad-Core ARM Cortex-A53, 18.400 DMIPS

GPU

ARM Mali-G31 MP2, 850MHz

RAM

2G DDRIII

ROM

16G EMMC

3D Graphics

OpenGL ES 1.1/2.0 and Open VG 1.1 support

Video Decode

4KP75 10B, H.265,VP9 Profile 2 ,AVS2 4Kp30 H.264, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV 8KH265_Main10@L6.2@Main_7680x4320_24fps_30.9Mbps_10bit_AAC2ch]Sanaipei_Tande_Amina-NIo74zd6Nn4.mp4 ​8KVP9_7680x4320_23.976fps_22.2Mbps_8bit_opus2ch]World’s_Best_Jump_Roper-Hawaii_Style_in_8K-nCBwEaB1eQU.webm

Audio Decode

Stereo DACs, 2x I2S in, 8x I2S out, 8x DAIC, MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,Dolby+

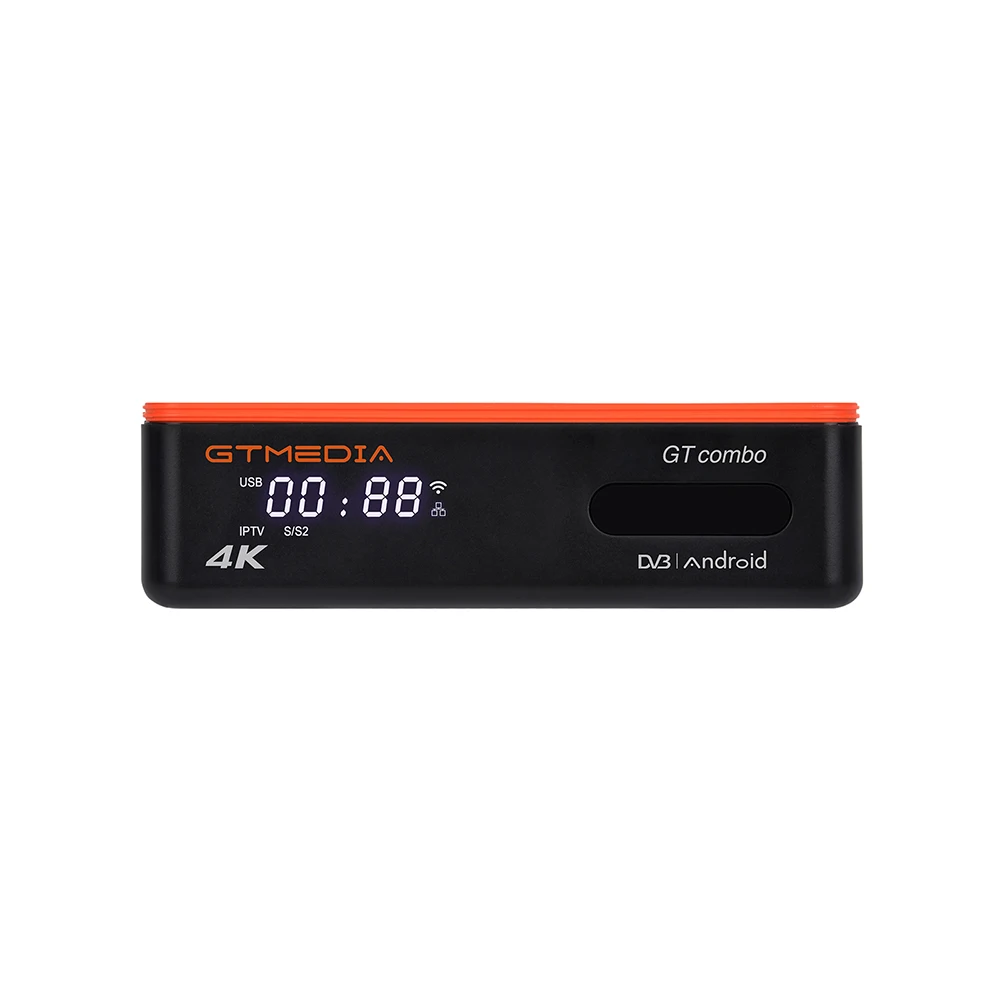

Panel display

4-digit white LED display,With multiple function indicators

LED Indicator

Power ON :Green; Standby :Red

Button

NOT

Wifi

Built in 2.4G/5G WiFiSupport IEEE 802.1.1b/g/n/ac

Blutooth

Bluetooth 4.1

IR

Exit IR for 38KHz,Infra Remote control

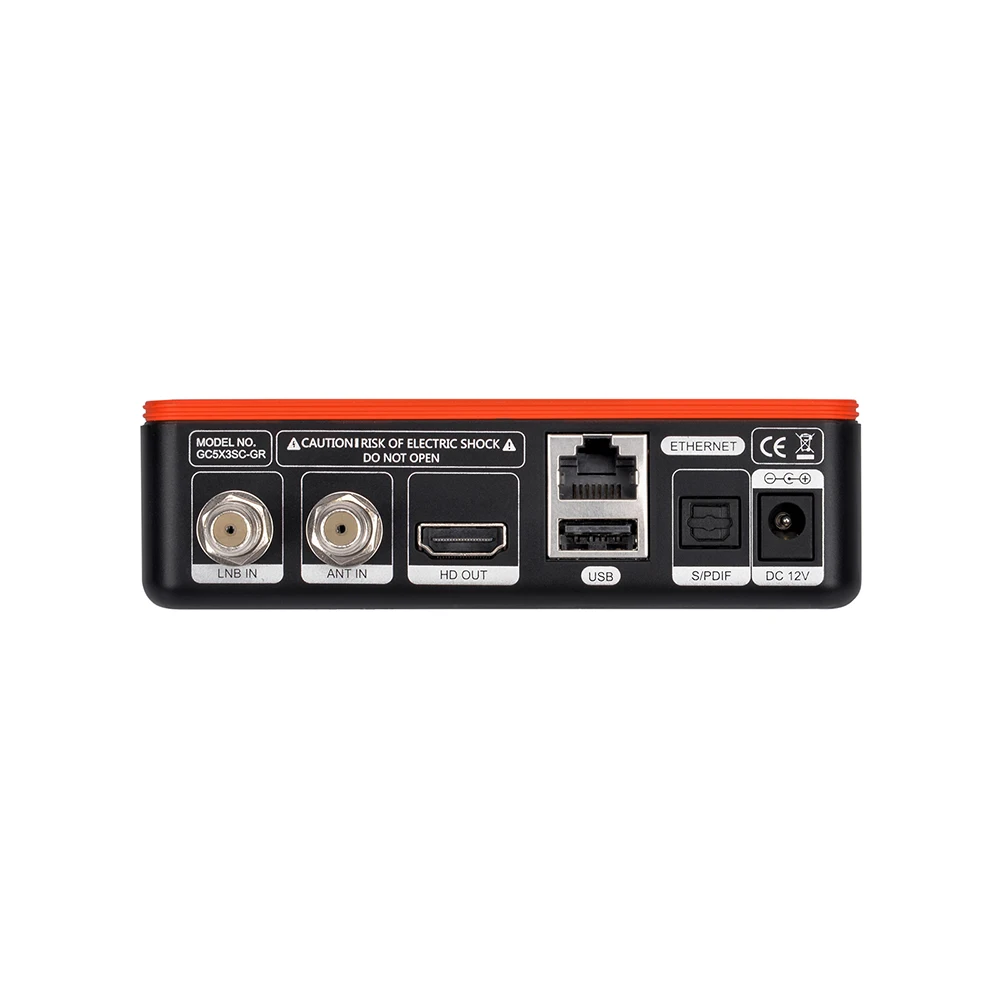

Rear Panel

ANT IN( EC-type IEC169-2 Female)

LNB IN(Frequency Range950MHz to 2150MHz)

HD OUT(HDMI2.0, up to 4kx2kp50/60 output )

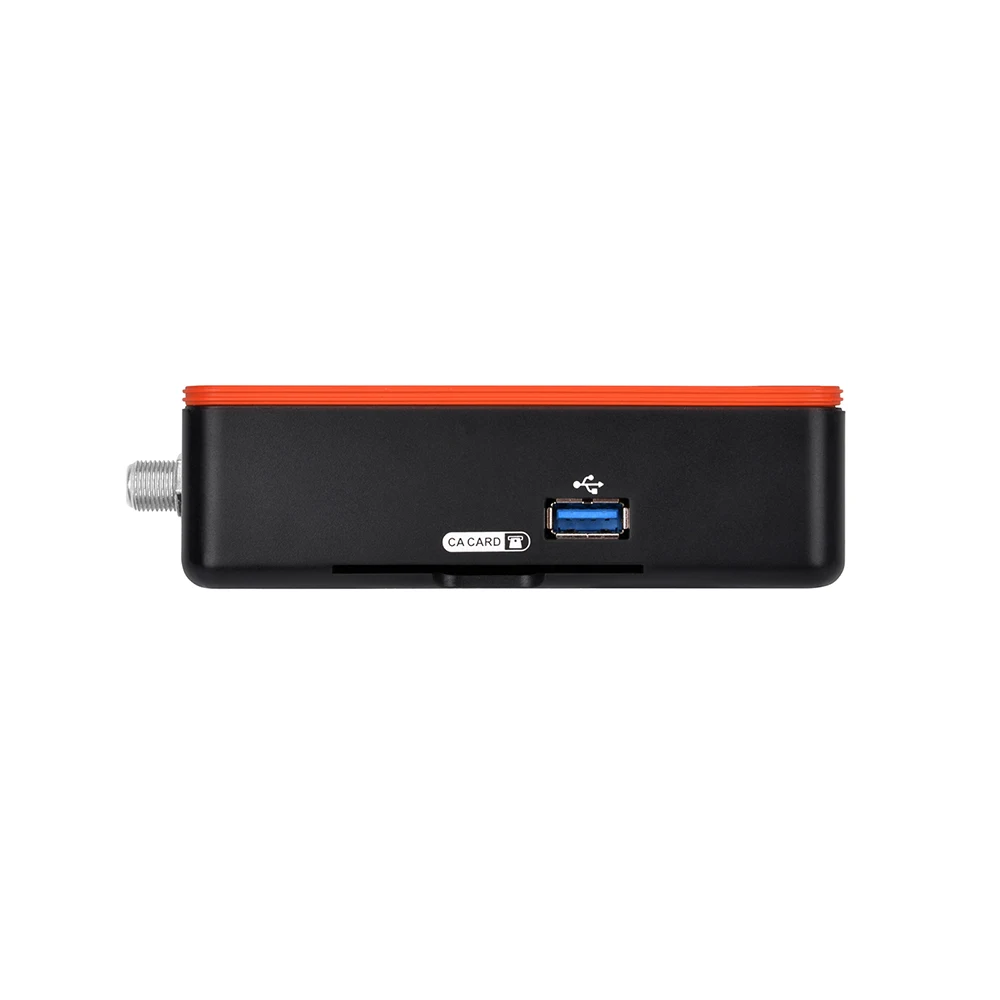

1*USB2.0+1*USB3.0 HOST

1*TF CARD

1*SPDIF

1*RJ45

1*CA Card

Power (DC 12V/1.5A)

DVB-S/S2specificati-ons

System standard

ETS 302 307

Frequency Range

950~2150MHz for DVB-S/S2/S2X baseband demodulator

LNB Power and Polarization

DiSEqC1.0/1.1/1.2/USALS Motor fully support, ​Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection

Input Level Range

-80dBm ~ -20dBm (average power)

Symbol Rates

DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, ​DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK

Forward error correction rate

1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range

±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Symbol Rates

Symbol rate range: ​QPSK/8PSK/16APSK 56M, 32APSK 49.6M, 64APSK 41.3M

Roll-off factors

Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Code Rates

1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ​,8/9,9/10 for DVB-S2, ​DVB-S2X Normal Frame and Short Frame FEC code rates

Features

Supporting CCM/VCM/ACM ​Supporting PLHEADER Scrambling (AMC) ​Integrating LDPC and BCH decoders

ANT. Connector

Connector:IEC TYPE FInput Impedance:75 Ω

DVB-T/T2 specificati-ons

System standard

ETSIEN 302 755

Frequency Range

VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2

Demodulation

COFDM,16QAM,64QAM,256QAM

Bandwidth model

6MHZ,7MHZ and 8MHZ

Country

Italy, Poland, Russia, Spanish, Sweden, United Kingdom, Germany,Greek, Slovenia, Argentina, Australia, Denmark, Finland, France, England, Brazil, Chile, Peru, Colombia, India, Georgia, Indonesia.

FEC Code Rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6

FFT

2K and 8K

Guard interval

1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Input Signal level:

Min -80dbm max -20dbm (64QAM,8K 1/8,7/8)

Antenna Power

5V DC @ 150mA MAX

ANT. Connector

IEC 169-2, female.Input Impedance:75 Ω

ISDB-T specificati-ons

System standard

ISDB-T broadcast (1, 3, 13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX

Frequency Range

VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz

Country

Brazil and Japan

FFT

2K/ 8K/32K

Demodulation

QPSK / 16QAM / 64QAM/QPSK or DQPSK

FEC Code Rate

1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic

Guard interval

1/4,1/8,1/16,1/32

DVB-Cable specificati-ons

Frequency Range

50–858MHz For DVB-Cable (J.83A/B/C)

Demodulation

16QAM,32QAM,64QAM,128QAM,256QAM

FEC Code Rate

1/2 , 2/3 , 3/4 , 5/6 , 6/7 or 7/8

Input Signal level

Min -80dbm max -20dbm

Country (ATSC-C)

U.S.ATSC Cable STD/U.S.ATSC Cable IRC/U.S.ATSC Cable HRC for ATSC-C

Sortware Features

Standard

Fully comply with DVB-S/S2/S2X (SCPC and MCPCreceivable from C/Ku band satellite), DVB-T/T2/Cable(J83.A/B/C)/ISDBT, MPEG-2/4 H.265 Standard

Channel Search

Supports Automatic network search for newly added transponders, and Supports NIT Search for DVB-T/Cable.

Channels Number

10000 channels TV and Radio programmable

Channel

Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)

Favorites

8 different favorite groups selection

OSD Language

OSDMulti-language for options(Arabic, Catalan, Czech, ​Dansk, Deutsch, Eapanol,English,Euskar,Farsi,French, ​Finnish,Galego,Greek,Hrvatska,Italian,Magyar,Nederlands, ​Polska,Spanish,Slovakian,Svenska,Portuguese,Russian, ​Ukrainian,Turkish,Thai and etc.)

EPG

Fully support to 7 days Electronic Program Guide(EPG)

OSD Color

256 color/32-bits OSD with anti-flickering

Parental Ctrl

Parental control for channels

Easy Menu

Plug and Play installation, with an easy to use Menu System

PAL/NTSC

Automatic PAL/NTSC conversion

Subtitle

support DVB EN300743 and EBU

Teletext

support DVB ETS300472 by VBI and OSD

Time Set

Time set by GMT offset automatic and manual,Summer Time support

Timer

5 event timers,off/Once/Daily/Weekly Mode

USB 3.0/2.0

Support FAT/FAT32/NTFS big capacity hard disk

PVR Option

USB for PVR,TIMESHIFT,media files playback

Media Codec

TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/DAT/SRT/SUB/BMP/JPG/JPEG/GIF/PNG/M4A files

Audio Codec

WMA,MP3,AAC (wma,mp3,m4a)

Photo Codec

JPEG,BMP,PNG,GIF Supported

SoftUpgrade

Software upgrades through USB port, Support OTA and HTTP/FTP upgrade.

Packing

Product Dimension

12.4*11.9*3.6cm

Packaged Size

18.8*15.2*8.5cm

Carton Size

43.5*38.5*31.5cm(20pcs/ctn)

Unit Weight

0.66 Kg with gift box

Carton Qty&Weight

20 pcs/Carton, 14.1 kgs

Accessories

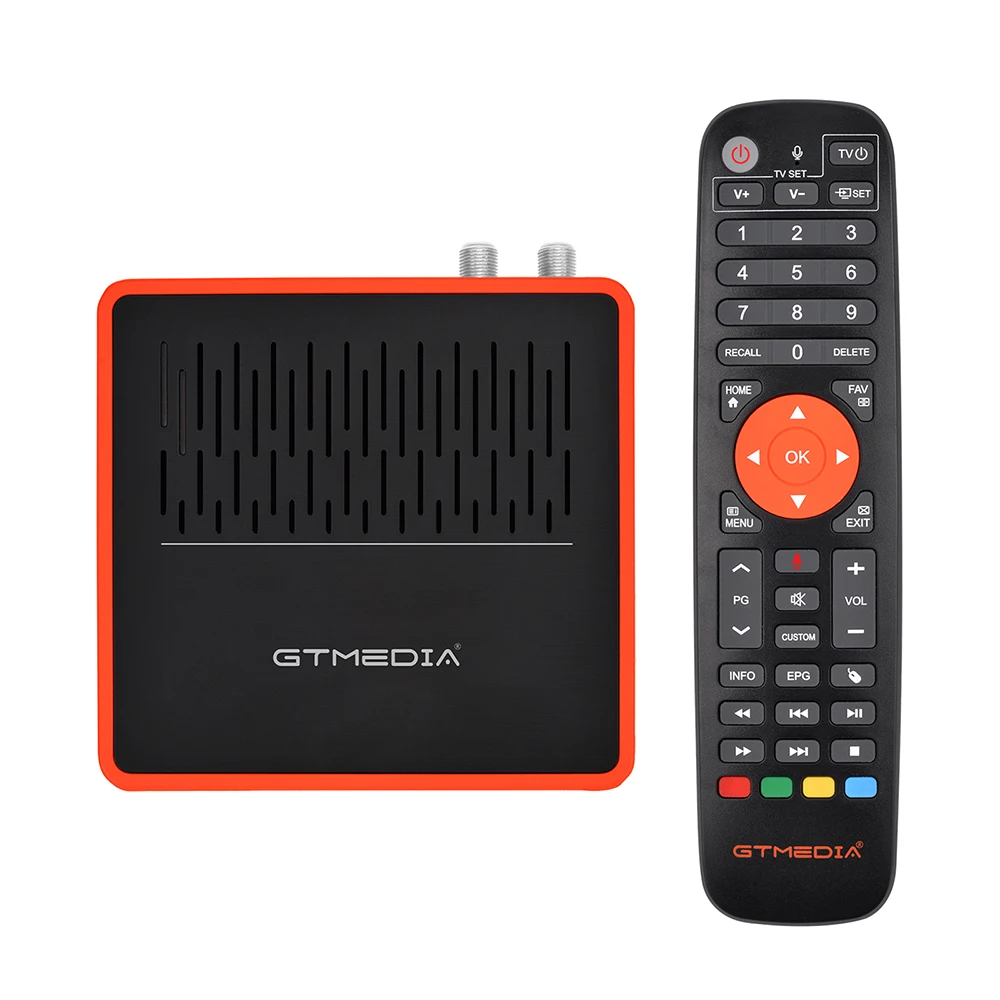

Gift Box, Adapter, IR remote control, HDMI Cable, User Manual

Physicals

Power Supply

AC IN100-250V, DC 12V/1500mAh

Power Consumption

12W in operation ​≦1 W Standby Power Mode

Temperature

Operation 0～+45℃; Storage -10~+60℃

Humidity

20~90%, non-condensed
